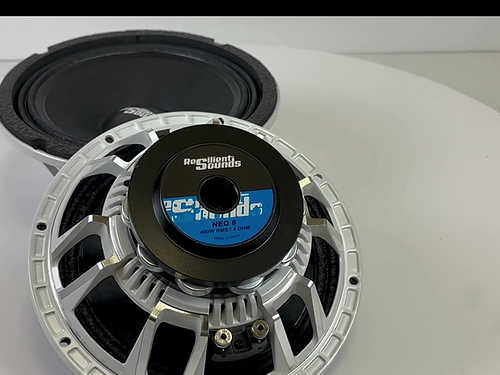

Neo 8

800 Watts Max Power Handling

2" Voice Coil

98 dB Sensitivity

100HZ-8.5KHz of frequency response

GENERAL SPECIFICATIONS

Nominal Diameter          8" (203mm)
Max Power Handling      800 w
RMS Power Handling     400 w
Frequency Response      100Hz-8.5KHZ
Nominal Impedance       4ohm
Sensitivity                         98dB
Magnet                              Neodymium
Voice Coil Diameter        2"
Voice Coil Wire               CCAW

THIELE-SMALL PARAMETERS

Equivalent Volume         Vas        9.53 L
Free Air Resonance        Fs           99 Hz
Mechanical Factor          Qms      4.18
Electrical Factor Qes       0.31
Total Factor       Qts        0.29
Cone Area          Sd          216.4cm²
Mechanical Mass            Mms     17.83 g
BI Factor                           BI           10.68 Tm
Dc Resistance                  Re          3.2 Ohms

MOUNTING INFO

Overall Diameter                          8.26”(210mm)
Front Mount Baffle Cutout          7.32"(186mm)
Mounting Depth                           3.11"(79mm)
Overall Depth                                 3.51"(89.3mm)
