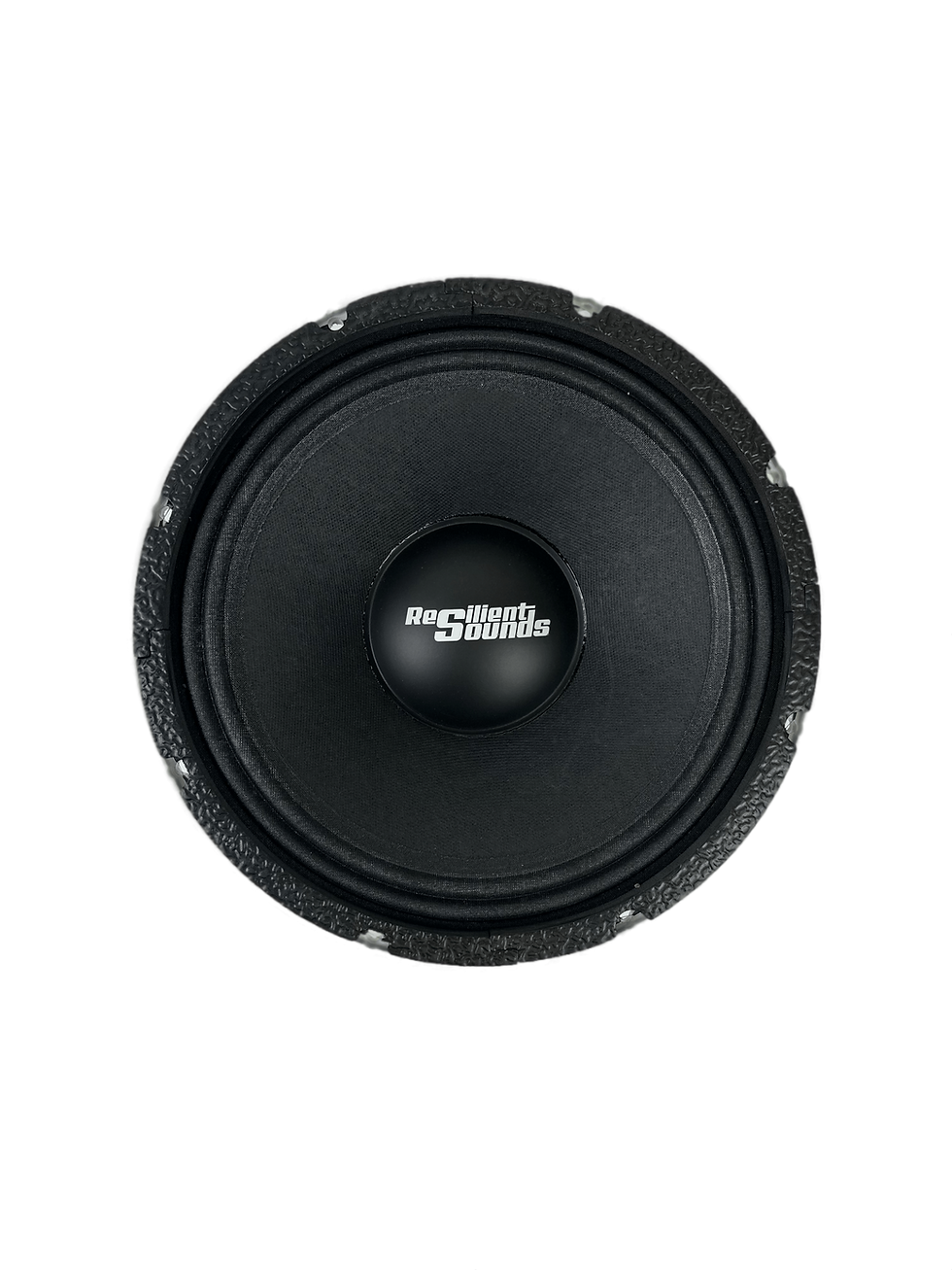

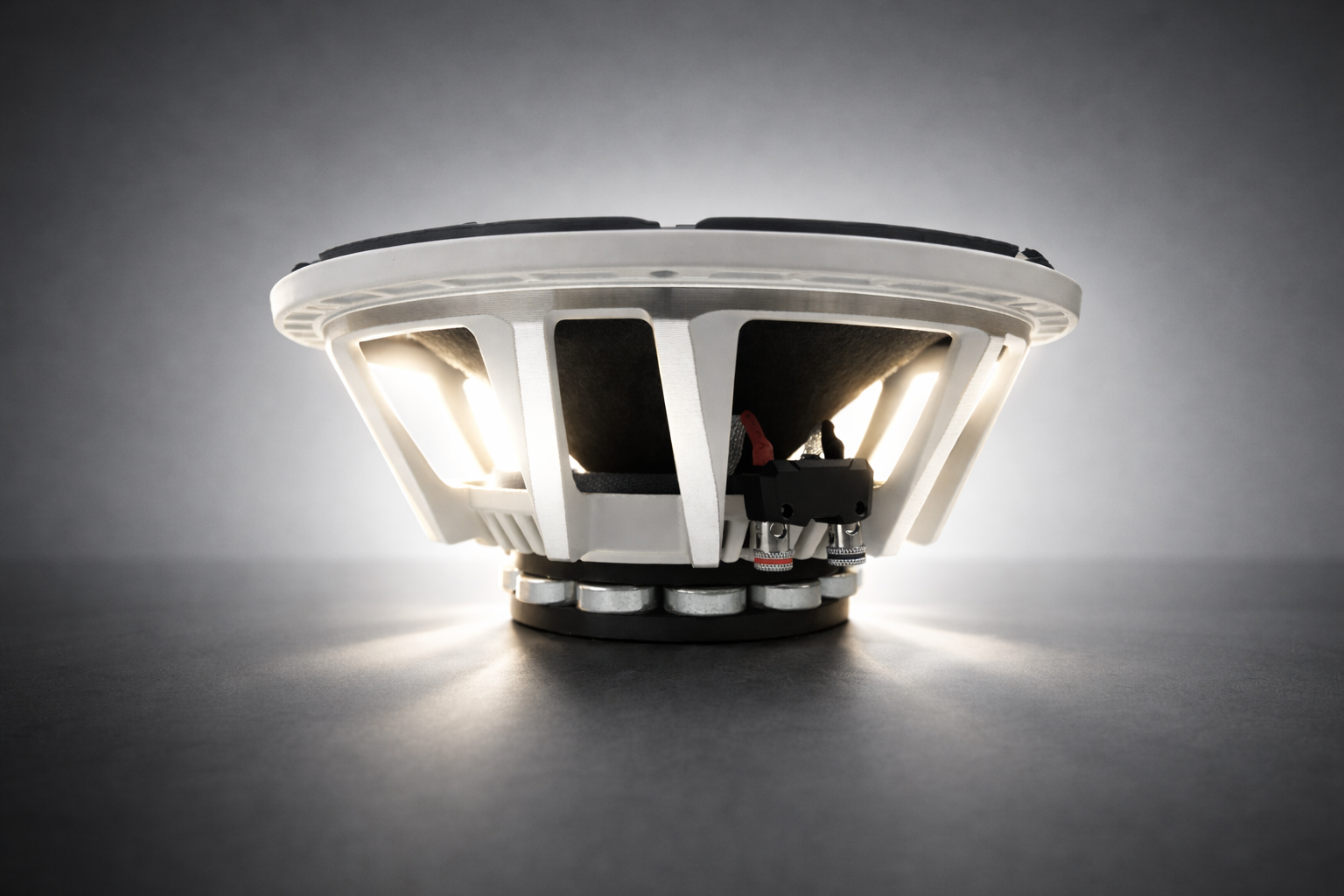

Resilient Sounds NEO 10 – 1000W 10” Speaker

The Resilient Sounds NEO 10 is engineered for enthusiasts who demand precision, clarity, and power in their midbass and midrange performance. Featuring a lightweight neodymium motor structure and a robust 2.5” voice coil, this 10” pro-style driver delivers high efficiency and impactful sound reproduction. With a peak power handling of 1000 watts and 98.5 dB sensitivity, the NEO 10 is built for serious audio systems where output and accuracy matter most.
Designed for both competitive and high-performance setups, the NEO 10 offers a wide frequency response of 75Hz – 6.5kHz, ensuring dynamic midbass punch and detailed upper midrange projection.

Key Features
Power Handling: 1000W Max / 500W RMS
High Sensitivity: 98.5 dB for loud and efficient output
Neodymium Magnet: Lightweight, powerful motor for enhanced performance
2.5” CCAW Voice Coil: High-temp copper-clad aluminum wire for durability
Wide Frequency Response: 75Hz – 6.5kHz for strong midbass and clear mids
Lightweight Design: Optimized for performance without added bulk

General Specifications
Nominal Diameter: 10” (254mm)
Impedance: 4Ω
Power Handling: 1000W Max / 500W RMS
Sensitivity: 98.5 dB
Magnet Material: Neodymium
Voice Coil Diameter: 2.5”
Voice Coil Wire: CCAW (Copper-Clad Aluminum Wire)

Thiele-Small Parameters
Equivalent Volume (Vas): 26.8 L
Free Air Resonance (Fs): 76 Hz
Mechanical Factor (Qms): 4.5
Electrical Factor (Qes): 0.37
Total Factor (Qts): 0.34
Cone Area (Sd): 349.6 cm²
Mechanical Mass (Mms): 27.96 g
BL Factor: 10.77 Tm
DC Resistance (Re): 3.2Ω

Mounting Information
Overall Diameter: 10.31” (262.0mm)
Front Mount Baffle Cutout: 9.25” (235.0mm)
Mounting Depth: 4.09” (104.0mm)
Overall Depth: 4.52” (115.0mm)

⚡ The Resilient Sounds NEO 10 is the ultimate choice for anyone looking to add precise, efficient, and powerful midbass/midrange performance to their system.
