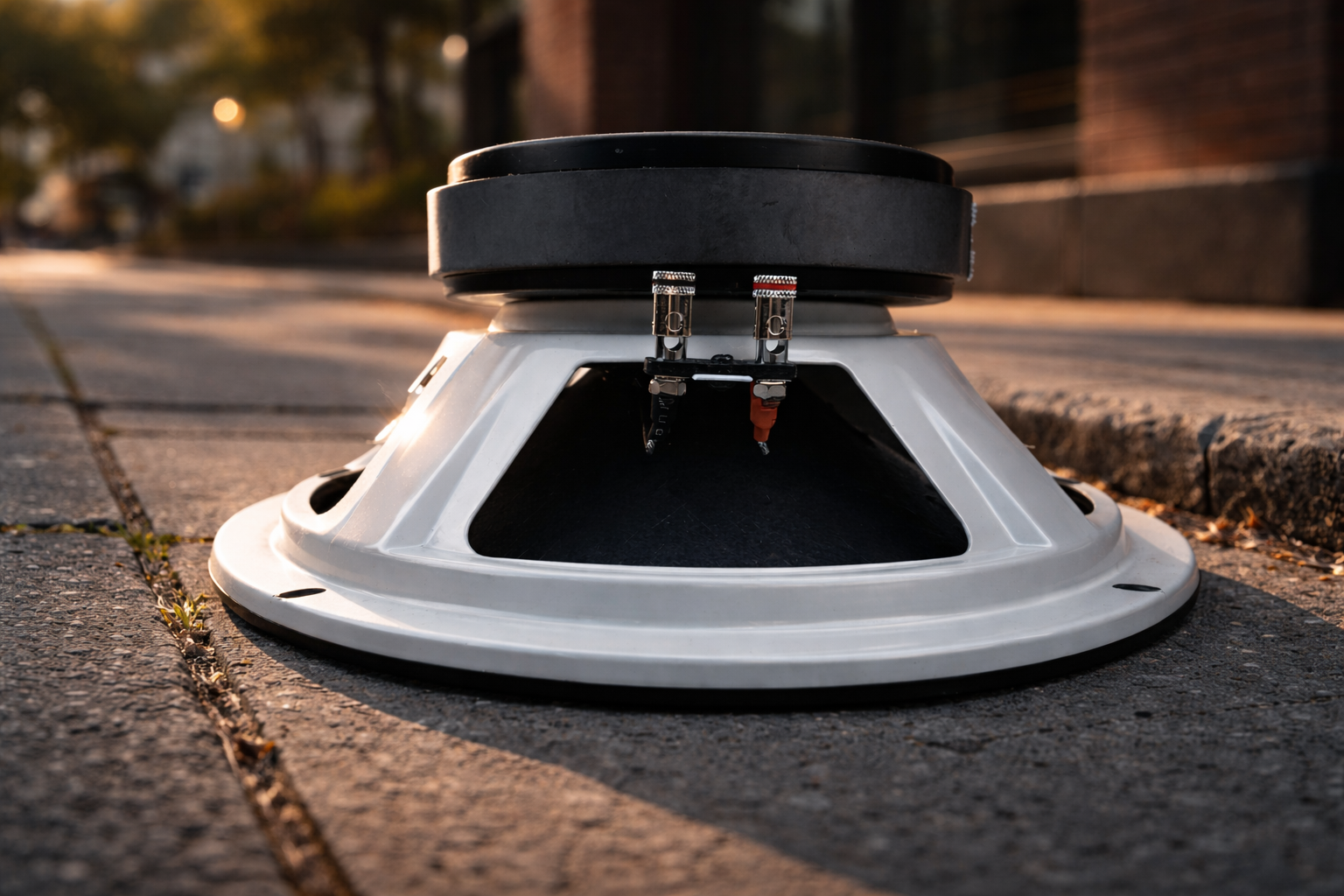

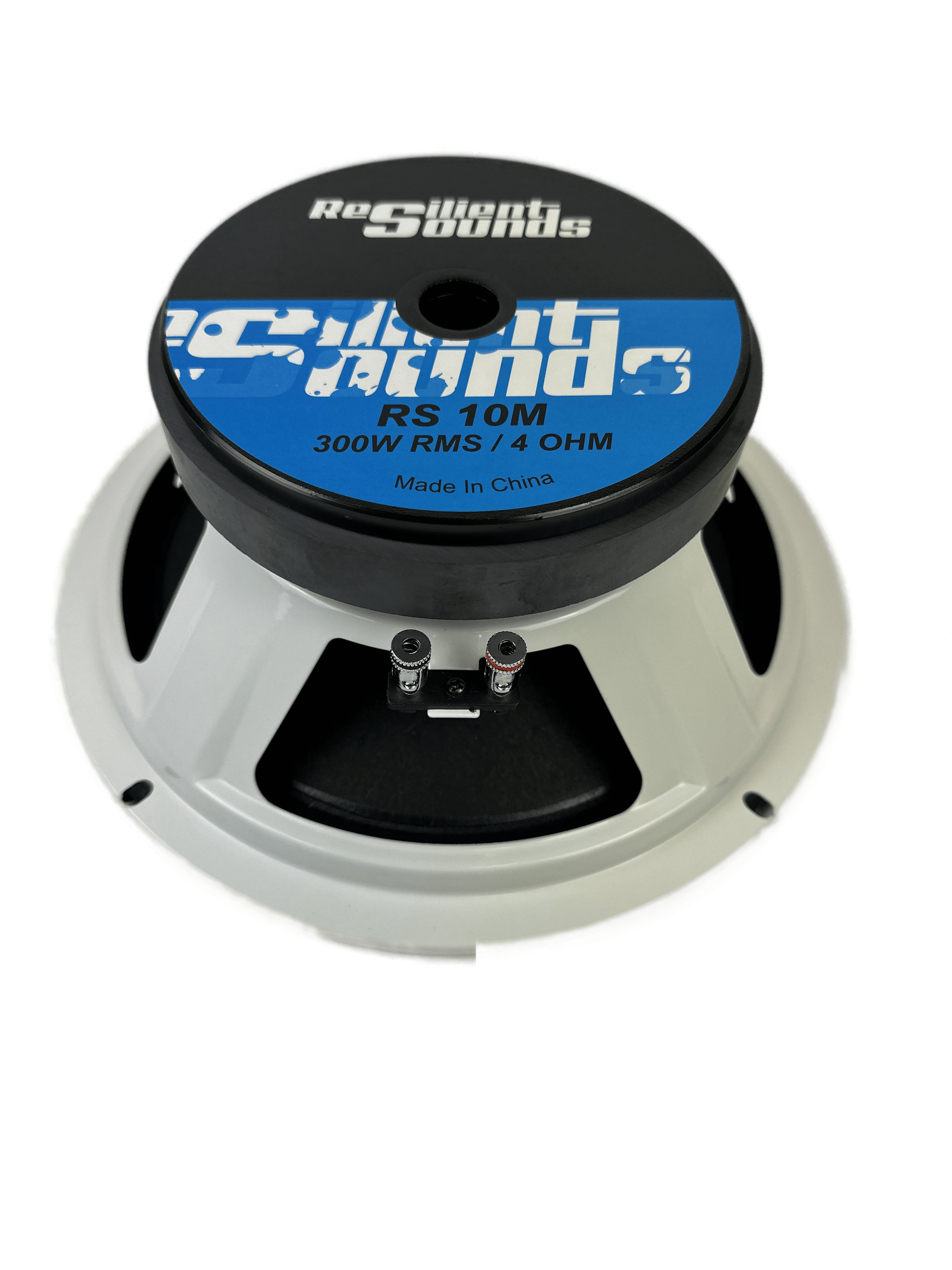

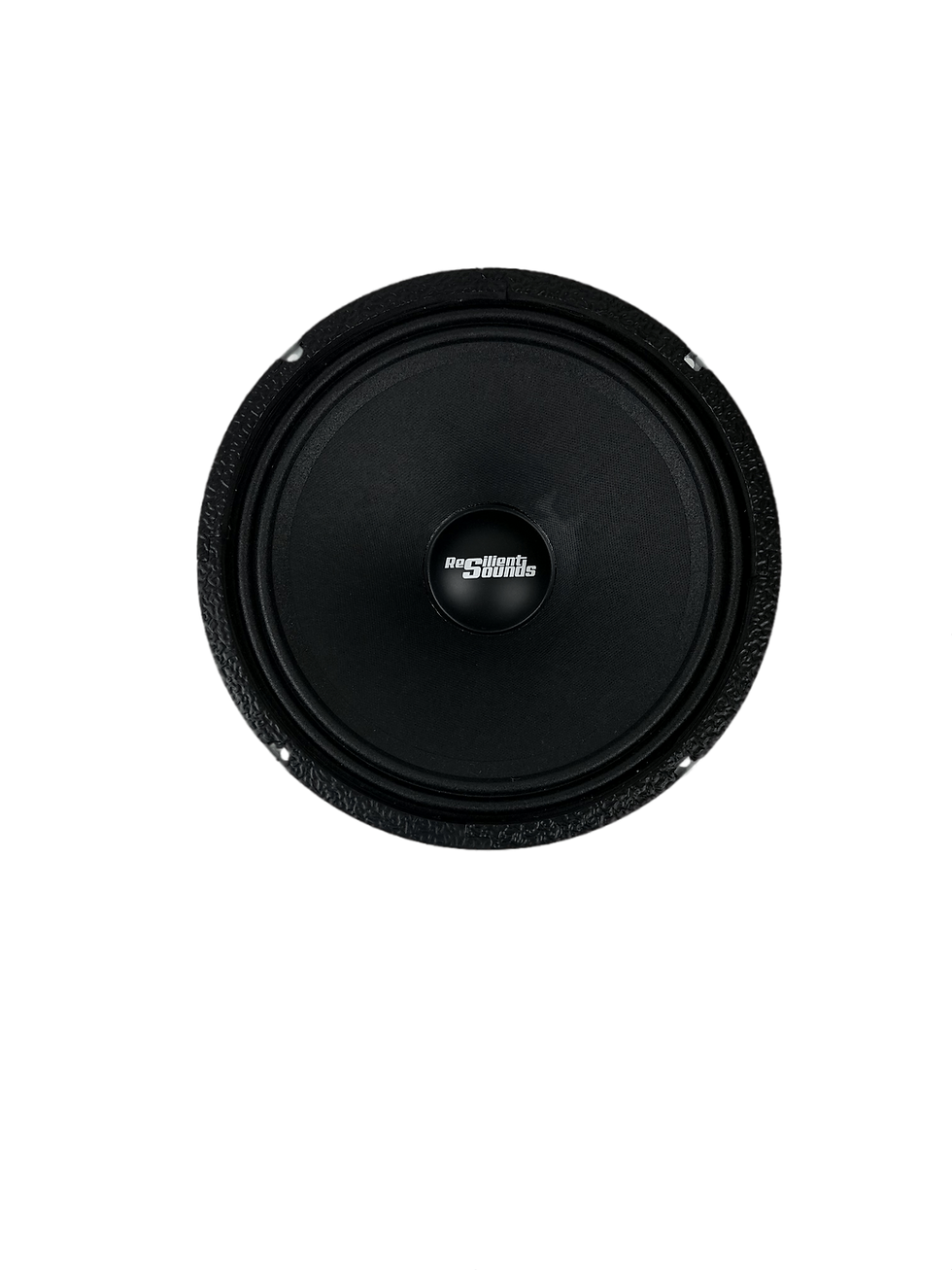

Resilient Sounds RS 10M – 10" Midrange Speaker (600W)
The Resilient Sounds RS 10M is engineered for enthusiasts who demand power, clarity, and reliability in their car audio setup. With a 600-watt max power handling capacity, precision-designed 2" voice coil, and 98.5 dB sensitivity, this 10-inch speaker delivers an exceptionally loud and clean performance. Covering a wide frequency response from 70Hz – 7kHz, the RS 10M ensures powerful midbass and crisp midrange for a truly dynamic listening experience.
🔑 Key Features
600 Watts Max Power Handling / 300 Watts RMS – Built for high-output performance.
2” High-Temperature Voice Coil – Provides durability and efficiency.
98.5 dB Sensitivity – Produces loud, clear sound even at lower power.
70Hz – 7kHz Frequency Response – Covers deep midbass through upper midrange.
Ferrite Magnet Motor Structure – Delivers consistent power and strength.
Optimized Cooling Design – Ensures reliable performance during heavy use.
📊 General Specifications
Nominal Diameter: 10” (254mm)
Impedance: 4Ω
Power Handling (Max): 600W
Power Handling (RMS): 300W
Frequency Response: 70Hz – 7kHz
Sensitivity: 98.5 dB
Magnet Type: Ferrite
Voice Coil Diameter: 2”
Voice Coil Wire: CCAW
⚙️ Thiele-Small Parameters
Equivalent Volume (Vas): 37.94 L
Free Air Resonance (Fs): 72 Hz
Mechanical Factor (Qms): 5.51
Electrical Factor (Qes): 0.48
Total Factor (Qts): 0.44
Cone Area (Sd): 349.6 cm²
Mechanical Mass (Mms): 22.21 g
BL Factor: 8.21 Tm
DC Resistance (Re): 3.2 Ω
📐 Mounting Information
Overall Diameter: 10.11” (257mm)
Front Mount Baffle Cutout: 9.13” (232mm)
Mounting Depth: 3.85” (98mm)
Overall Depth: 4.21” (107mm)
✅ Perfect for high-powered car audio systems that demand clarity, accuracy, and volume, the Resilient Sounds RS 10M is built to handle extreme sound pressure while maintaining outstanding reliability.
