Gold 8 1000 RMS/2000 Watt Woofer
Resilient Sounds Gold Series V1 Subwoofers
Conservatively rated for real-world power handling, the Gold Series V1 subwoofers deliver performance that exceeds their RMS numbers—perfect for bassheads who want reliability beyond inflated specs.
Built heavy and beefy with premium materials and excellent construction, they’re engineered to take serious abuse while maintaining top-tier sound quality.
Offering high-end performance at a budget-friendly price, the Gold Series V1 outperforms many lower-grade subwoofers with exaggerated ratings and competes with far more expensive brands.
Deep, clean, powerful bass — built to last.
Subwoofer Features
RMS | Conservatively Rated 1,000 RMS / 2000WATTS MAX |
Voice Coil | 2.5" 4 Layer Dual Voice Coil |
Spider Pack | Double Stacked 6.5" Nomex Spider Pack with sewn leads |
Motor/Magnet | Double Stack Motor With Spacers |
Cone | Competition Grade Paper Cone |
Surround | Large Foam Surround |
Shorting Ring | Aluminum shorting ring |
Push terminals | Push Terminals for easy installation |
XMAX | 19MM |

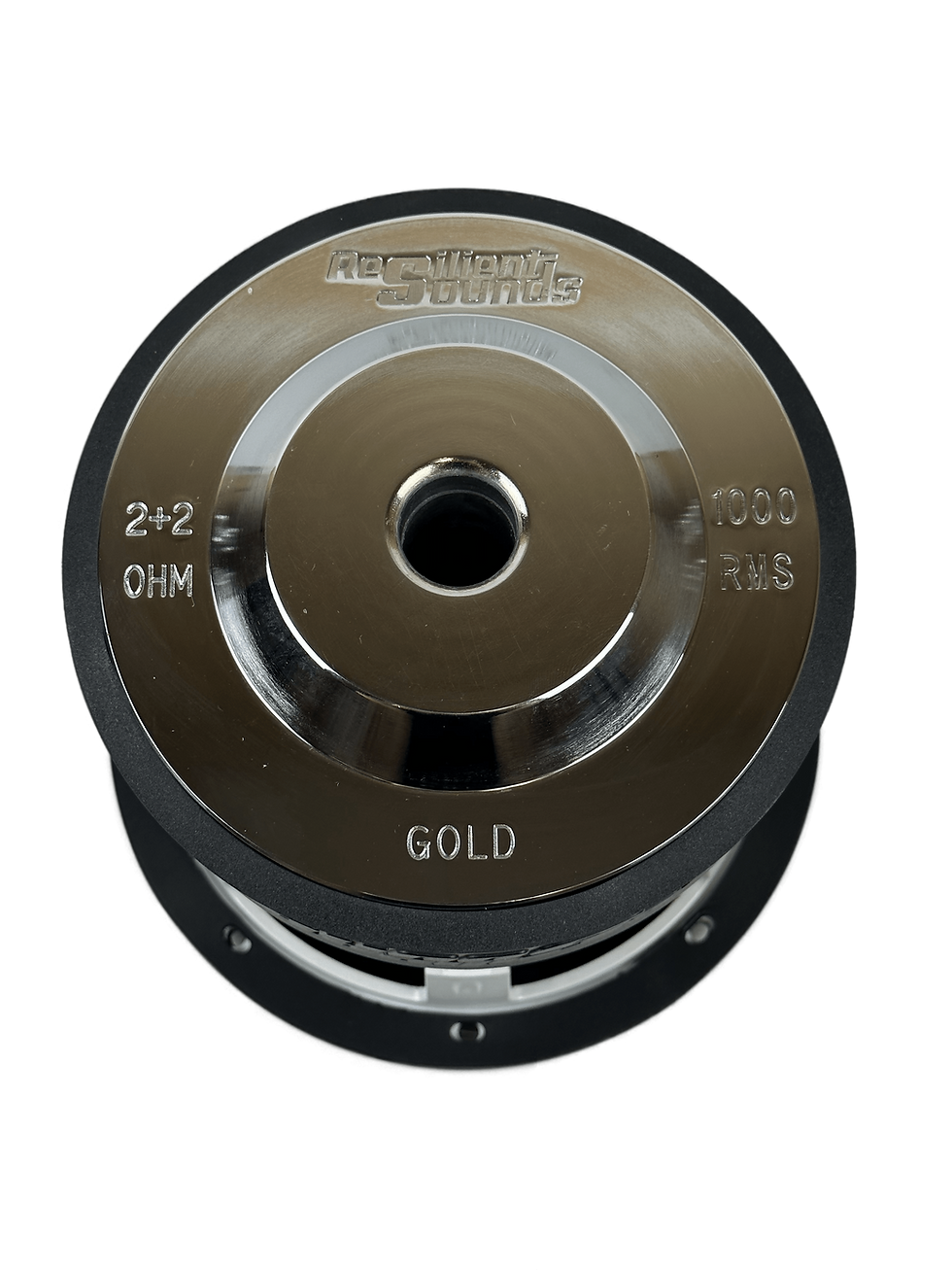

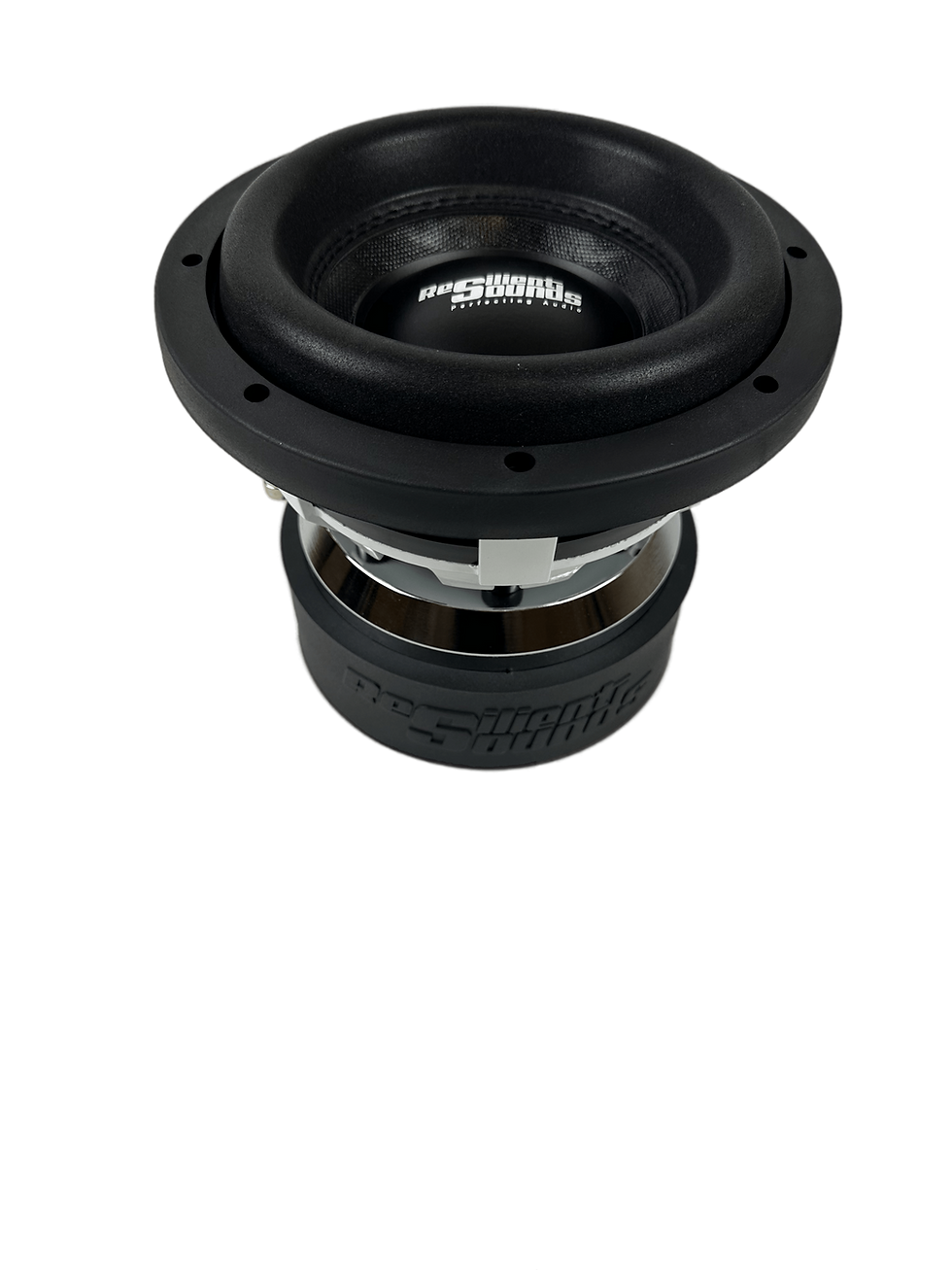

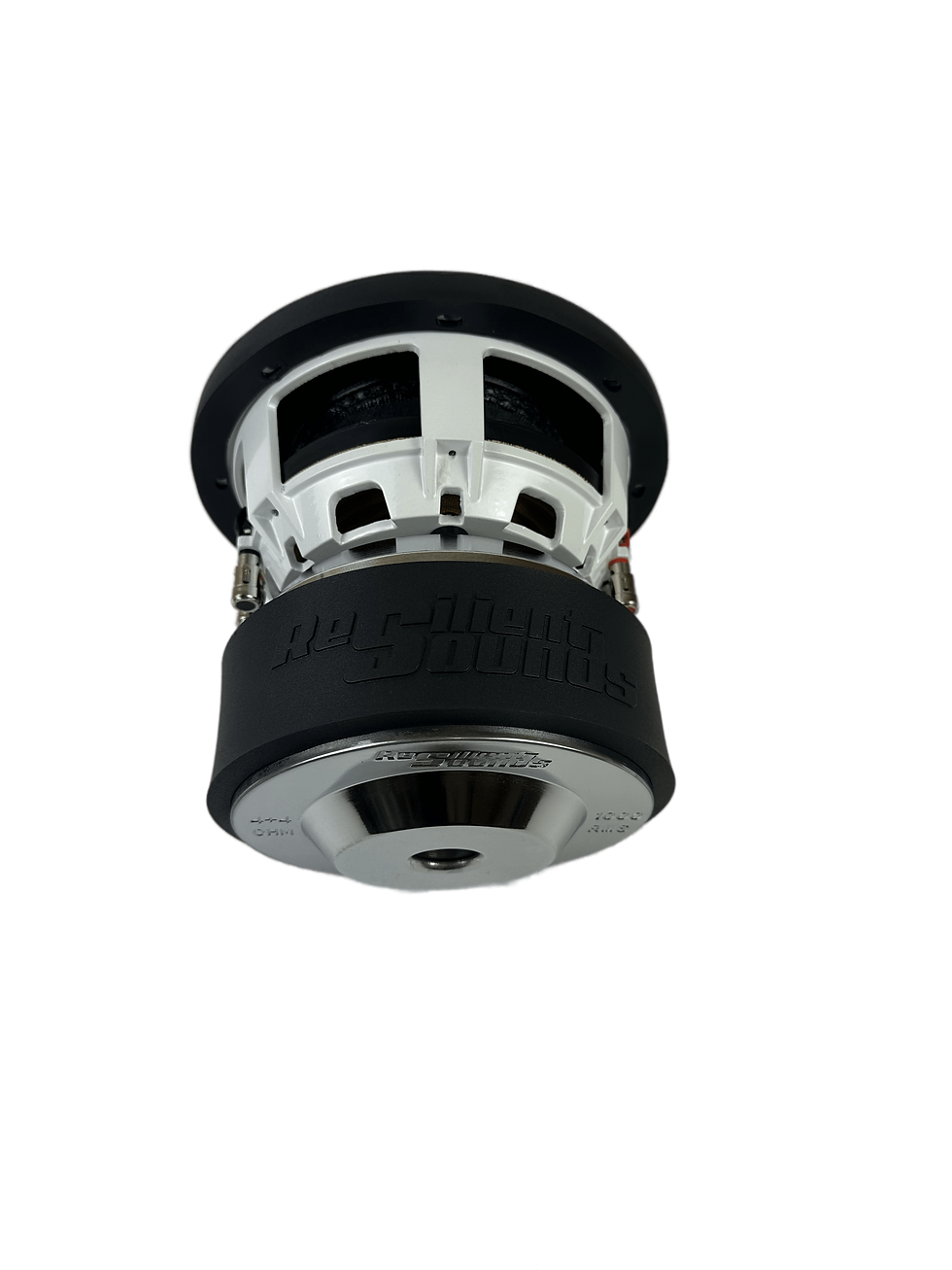

GOLD 8 1,000RMS
BOX SPECS
Every vehicles applications, equipment, tuning, wiring, ext all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.
Suggested Healthy spec range.
Rule of thumb lean towards smaller enclousre if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power
CUBIC FT
.9 - 1.1 CUBIC FT PER SUBWOOFER
TUNING
35 HERTZ
PORT AREA
12-16 SQ INCHES OF PORT AREA PER CUBIC FT
MOUNTING DEPTH
7 1/8" INCHES
CUTOUT
7.3 INCHES
DISPLACEMENT
0.16 CUBIC FT
T/S Params
Parameter
GOLD 8 D2
GOLD 8 D4
RE
4 Ω
6 Ω
SPL
81.3 dB
79.1 dB
FS
49.5 Hz
42.5 Hz
BL
23.5
26.4
QMS
3.35
4.17
QES
0.43
0.54
QTS
0.38
0.48
MMS
189 g
237.9 g
CMS
0.05 mm/N
0.06 mm/N
VAS
3.1 L
3.1 L
XMAX
19 mm
19 mm
Power
1000 W
1000 W
