The Resilient Sounds RS 15 is our 15" entry-level subwoofer built to move real air without a big-ticket price. A 3" 4-layer dual 4-ohm voice coil, triple stacked Nomex spiders, and a 130 oz motor keep the cone controlled while it loads a box. Rated 500 watts RMS / 1000 watts peak, it is made for daily systems that still want deep, musical bass. Entry-level price. Not entry-level output
500W RMS / 1000W peak — 15" RS Series entry subwoofer for daily systems that want deep bass without a competition price
Triple stacked Nomex spiders — keep the cone centered under hard use so the RS 15 stays controlled when you turn it up
130 oz motor + 3" 4-layer dual 4-ohm voice coil — strong motor force and flexible 2-ohm or 8-ohm wiring
Musical, not just loud — 87.9 dB sensitivity, Fs 27.3 Hz, and 17 mm Xmax for low, clean punch
Easy install — 7.25" mounting depth and 13.9" cutout; recommended ported box 1.75–2.5 cu ft tuned around 35 Hz
SPECS
RMS: 500
PEAK WATTS: 1,000 WATTS
MOTOR: 130oz
SPL: 87.9dB
FMS: 27.3 Hz
BL: 21.0
Res: 58.0
Re: 7.6
Qms: 5.44
Qes: 0.72
Qts: 0.64
Cms: 0.14 mm/N
Mms: 244.6 gr
Nref: 0.39%
VAS: 142.2 L
Rp: 61.3
Lp: 71.2 mH
Cp: 593.2 uF
Le: 3.82 mH
Xmax: 17

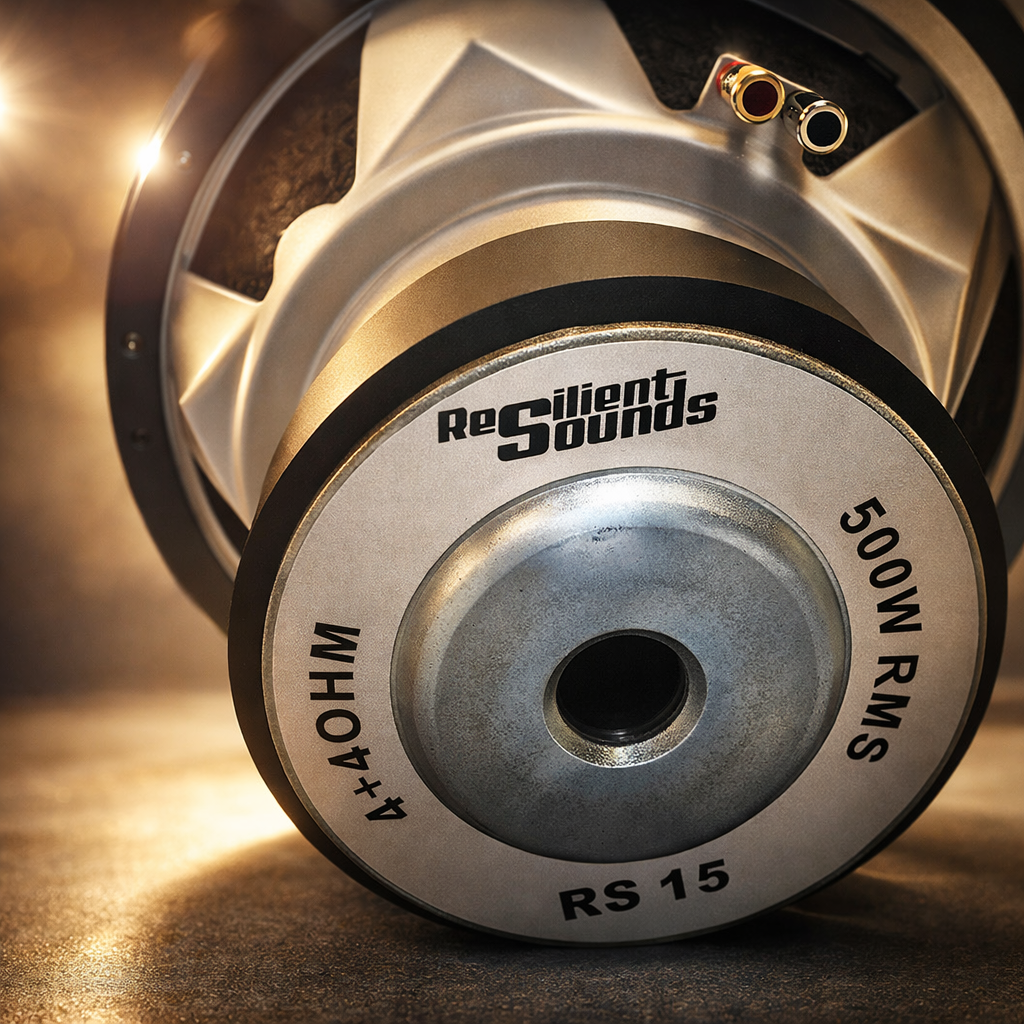

RS 15 500 RMS Entry Woofer D4
BOX HEALTHY RECOMMENDATION
Every vehicles applications, equipment, tuning, wiring, ext. all play a factor in making sure your woofers are playing clean signals to avoid any clipping. Our products have the reputation of taking some of the most abuse in the industry for its given power rating, but to ensure the longevity using the right air space and scoping for a clean signal will be sure to have a lasting daily resilient subwoofer.
Suggested Healthy spec range.
Rule of thumb lean towards smaller enclosure if clamping @ or more than conservative power. Lean towards bigger enclosure clamping below conservative power
CUBIC FT
1.75 - 2.5 CUBIC FT PER SUBWOOFER
TUNING
35HERTZ
PORT AREA
12-16 SQ INCHES OF PORT AREA PER CUBIC FT
MOUNTING DEPTH
7.25 INCHES
CUTOUT
13.9 INCHES
DISPLACEMENT
0.18 CUBIC FT
OUTSIDE DIAMETER
15.5 INCHES
